Cable grommet, ∅18.5 mm, black, 1000pcs.
Art.-No. 633-04020 | HV1402-PVC-FR-BK |  세부

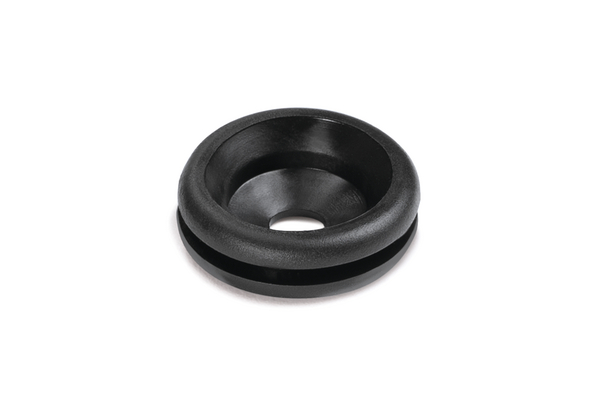

Edge Protection Grommet - HV1402.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Downloads
    Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 9.0mm
    Cable ∅ min 6.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1402-PVC-FR-BK

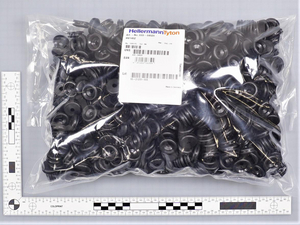

    Pack Content 1000pcs.
    Package Content packed in pcs.
    Product Family Edge protection grommets
    Product Group For apertures
    Type HV1402
    Variant Round

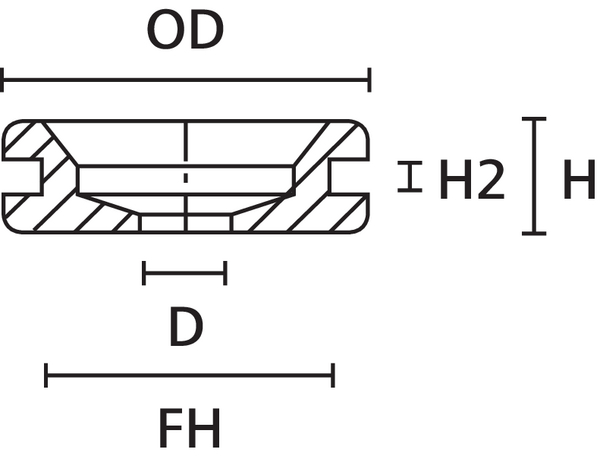

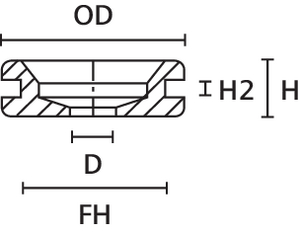

    Diameter (D) 6.0mm
    Height (H) 7.0mm
    Height (H2) 2.0mm
    Outside Ø (OD) 23.0mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 18.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-166-1010
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186504
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00563m³
    Packaging 1 - Weight (kg) 1.871001kg
    Packaging 1 - Width (m) 0.32m
    UNSPSC Key 39131603
