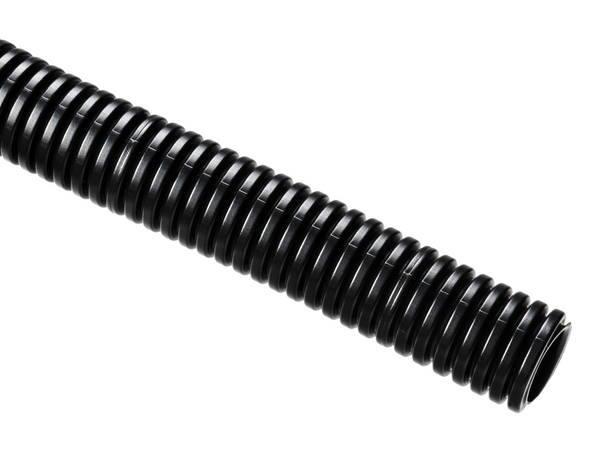

HG-HISL1000-PA12-BK
Art.-No. 166-90267 | HG-HISL1000-PA12-BK |  Details

    This product is not available anymore.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 12 (PA12)
    PART DESCRIPTION HG-HISL1000-PA12-BK
    Pack Cont. 15.24m
    Package Content packed in reel
    Pitch Type coarse
    Type HG-HISL1000
    Bending Radius min. (BR) 2.17"
    Bending Radius min. (R) 55mm
    Inner Diameter D (Imperial) 1.11"
    Inside Ø (ID) 28.1mm
    Length (L) 15.2m
    NW ∅ 29mm
    Nominal ∅ 1"
    Nominal ∅ 34mm
    Outside Ø (OD) 34.5mm
    Outside ∅ (OD) 1.36"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free Yes
    Operating Temperature -50 °C to +110 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin GB
    GTIN-13 / EAN 4031026485461
    UNSPSC Key 39131601
