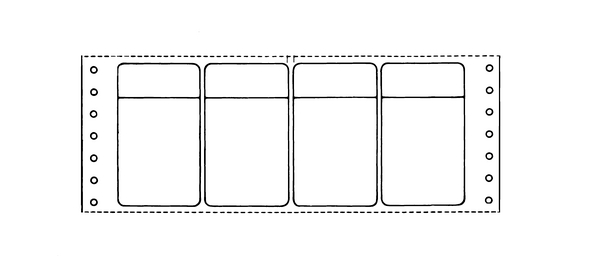

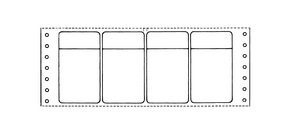

Cable label, self laminating, white/transparent, dot-matrix print, 48.0mm, H2=81.0mm, 2500pcs.
Art.-No. 595-01100 | TAG1-100B-CL/WH |  Details

    Add to watchlist
    Downloads Datasheet
    Application Used in applications where low to medium print volumes are needed and where simple alphanumeric texts are required. HellermannTyton self laminating wire markers can be used in industries ranging from automotive for wire and pipe identification to electrical panels. For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately. The labels are supplied in a protective box that ensures dirt and dust is kept away from your labels so ensuring less waste.
    Colour White (WH), Transparent (CL)
    Colour Marking Field White (WH)
    Fixation Method Pasting / Stick
    Material Type 100B, Vinyl, white transparent, self-laminating (100B)
    PART DESCRIPTION TAG1-100B-CL/WH
    Pack Cont. 2500pcs.
    Package Content packed in pack
    Self adhesive (Yes/No) Yes
    Type TAG1
    Variant Adhesive label
    With label space Yes
    Bundle Diameter max (metric) 19.0mm
    Bundle ∅ 9.90-19.0mm
    Bundle ∅ min. 9.90mm
    H printable 19.05mm
    HR 2.0"
    HR 50.8mm
    Height (H2) 81.0mm
    Outside ∅ max (OD max.) 19.70mm
    Outside ∅ max. 0.77"
    Outside ∅ min. 0.389"
    Outside ∅ min. (OD min.) 9.9mm
    Print Method dot-matrix print
    Thickness (T) 75.0µm
    Thickness of Foil 75
    VR 88.90mm
    VR 3.5"
    Width (W) 48.0mm
    Width of LIner (WL) 9.5"
    Width of Liner (WL) 241.30mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    CE Certification No
    CSA Certified No
    Curing Temperature from +10 °C
    Halogen-free No
    Operating Temperature -46 °C to +93 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number MH18396
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026175089
    Labels per Column 4
    Labels per Row 4
    Labels per Sheet 12
    Packaging 1 - Qty 2500
    Packaging 1 - Weight (kg) 0.8kg
    Packaging 2 - Qty 1
    Packaging 3 - Qty 2500
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121612
