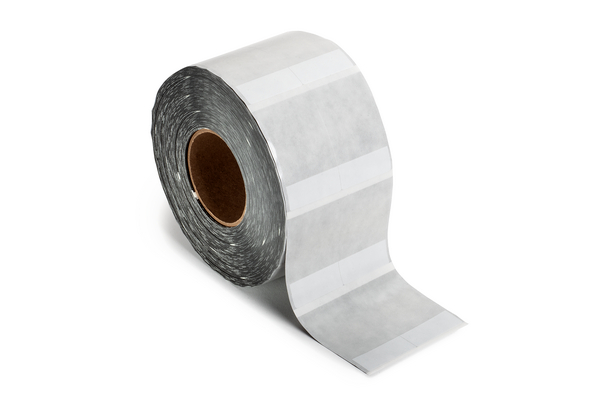

Cable label, self laminating, weather resistant/chemical resistance, white, thermal transfer print, 19.05x48.26mm, H2=79.24mm, 2500pcs.
Art.-No. 596-00005
| TAG1T1-100B-WH
|
Details
- Ideal for marking and identification of wires and cables
- Clear self laminating film wraps around the cable to protect marks from dirst and abrasion
- Excellent UV and temperature resistance
- Ideal for both internal and external application
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/15098_All_Languages.jpg)
More products in this product group:
Application | The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro. |
Chem. Material Properties | Good for most petroleum solvents and low aliphatic alcohols. Not good for most esters and acetones. Water resistant. |
Colour | White (WH) |
Colour Marking Field | White (WH) |
Key product features | weather resistant, chemical resistance |
Material | Type 100B, Vinyl, white transparent, self-laminating (100B) |
PART DESCRIPTION | TAG1T1-100B-WH |
Pack Cont. | 2500pcs. |
Package Content packed in | reel |
Product Family | Self Laminating Labels |
Product Group | Adhesive Labels |
Type | TAG1T1 |
Bundle Diameter max (metric) | 19.0mm |
Bundle ∅ | 6.35-19.0mm |
Bundle ∅ min. | 6.35mm |
H printable | 19.05mm |
HR | 2.0" |
HR | 50.80mm |
Height (H) | 19.05mm |
Height (H2) | 79.24mm |
Print Method | thermal transfer print |
Thickness (T) | 25µm |
Thickness of Foil | 190.5 |
VR | 86.8mm |
VR | 3.42" |
Width (W) | 48.26mm |
Width of LIner (WL) | 3.875" |
Width of Liner (WL) | 98.42mm |
Adhesive | Acrylic |
Adhesive Operating Temperature | -46 °C to +93 °C |
CE Certification | No |
CSA Certified | No |
Curing Temperature | +10 °C |
Halogen-free | No |
Operating Temperature | -40 °C to +96 °C |
ROHS compliant | Yes |
Specifications |
![]() ![]() |
Specifications | UL-Recognized |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL OCD link | Link Link |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | No |
UL-File Number | MH18396 |
UV-Stabilised | Yes |
