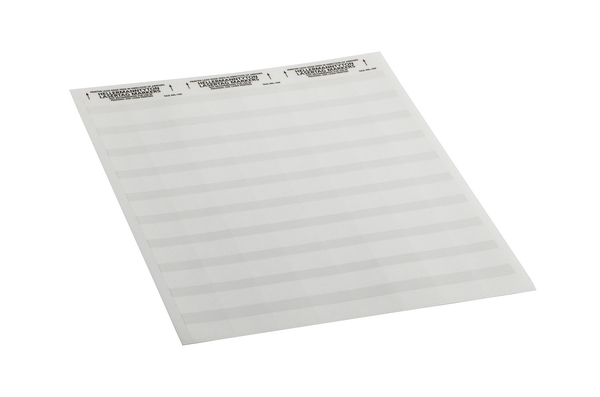

Cable label, self laminating, white, laser print, 25.4mm, H2=25.4mm, 2500pcs.
Art.-No. 594-49105
| TAG49L-105-WH
|
Details
- Crisp and clear text, barcodes and graphics
- Used to identify wide range of electrical and electronic products
- Clear protective box to ensures labels stay as good as new
- Simple and efficient label design and printing with TagPrint Pro software
- Self Laminate
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
More products in this product group:
Application | This range of labels has been specially developed for use with laser printers. The material properties ensure print is instantly smudge resistant so can be handled immediately. Using laser printers allows users to print barcodes, graphics and condensed text. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately. |
Colour | White (WH) |
Colour Marking Field | White (WH) |
For Wire Type | 2 Pair Fiber |
Material | Type 105, Polyester, white (105) |
PART DESCRIPTION | TAG49L-105-WH |
Pack Cont. | 2500pcs. |
Package Content packed in | pack |
Paper Format | Letter |
Product Family | Self Laminate Label |
Product Group | Labels for Laser Printers |
Type | TAG49L |
Bundle Diameter max (metric) | 7.60mm |
Bundle ∅ | 3.80-7.60mm |
Bundle ∅ min. | 3.80mm |
H printable | 8.89mm |
HR | 1.0" |
HR | 25.4mm |
Height (H2) | 25.4mm |
Outside ∅ max (OD max.) | 5.30mm |
Outside ∅ max. | 0.208" |
Outside ∅ min. | 0.102" |
Outside ∅ min. (OD min.) | 2.6mm |
Print Method | laser print |
Thickness (T) | 35.0µm |
VR | 25.40mm |
VR | 1.0" |
Width (W) | 25.4mm |
Width of LIner (WL) | 8.5" |
Width of Liner (WL) | 215.00mm |
Adhesive | Acrylic |
Adhesive Operating Temperature | -40 °C to +150 °C |
CE Certification | No |
CSA Certified | No |
Curing Temperature | +10 °C |
Halogen-free | No |
Operating Temperature | -40 °C to +149 °C |
ROHS compliant | Yes |
Specifications |
![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
Country of Origin | US |
GTIN-13 / EAN | 4031026174907 |

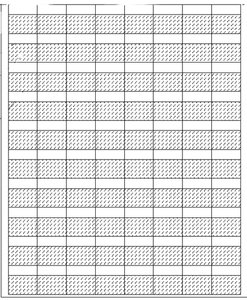

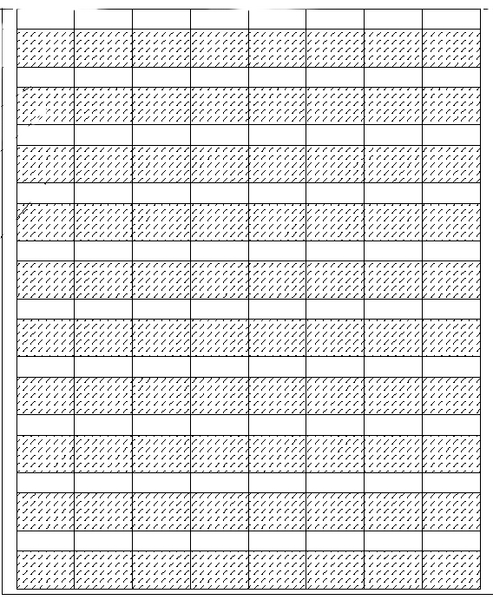

Labels per Column | 8 |
Labels per Row | 8 |
Labels per Sheet | 64 |
Packaging 1 - Qty | 2500 |
Packaging 1 - Weight (kg) | 0.521kg |
Packaging 2 - Qty | 1 |
Packaging 3 - Qty | 2500 |
Packaging 4 - Length (m) | 1.20m |
Packaging 4 - Type | pallet |
Packaging 4 - Width (m) | 0.80m |
Sheets per Pack | 32 |
