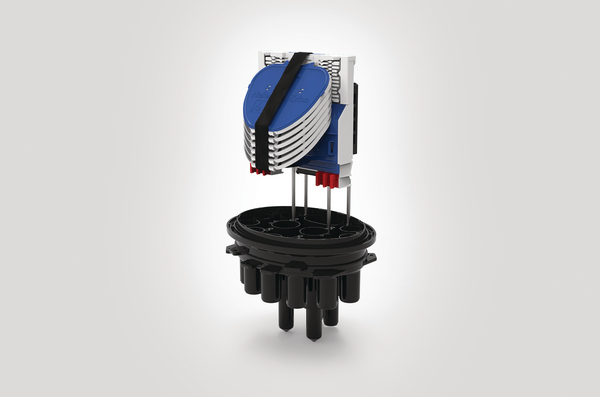

FDN 16 port A length IR closure with basket and 6 SE-IR MKII trays with 3A splice bridges
Nº de artigo 857-02048
| FDNIR-AXBAMX
|
Detalhes
- Maximum 72 fibre splice capacity
- 15 round ports and 1 oval port
- Moulded supports allow the cover to be removed whilst closure is left in-situ
- Fixing points for external cable management attachments
- Positive fibre management to ensure consistent 15mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 6 SE-IR MKII trays with 3A splice bridges
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Solicite já a sua oferta individual
Solicitar orçamento
Mais produtos neste grupo de produtos:
Capacidade de fusões | 72 |
Contagem de portos | 1, 2, 9, 4 |
Cor | Preto (BK) |
DESCRIÇÃO GLOBAL DA PEÇA | FDNIR-AXBAMX |
Material | Polipropileno (PP) |
Método de Selagem | Cablelok, Termorretráctil |
Porto | L, T, B, S |
Quant. de Bandejas | 6 |
Quantidade por | caixa |
Tipo | FDNIR-AXBAMX |
Tipo de Bandeja | Integrated Routing SE MKII |
Tipo de Tampa | A |
Variante | Compartimento FTTx para Exterior |
