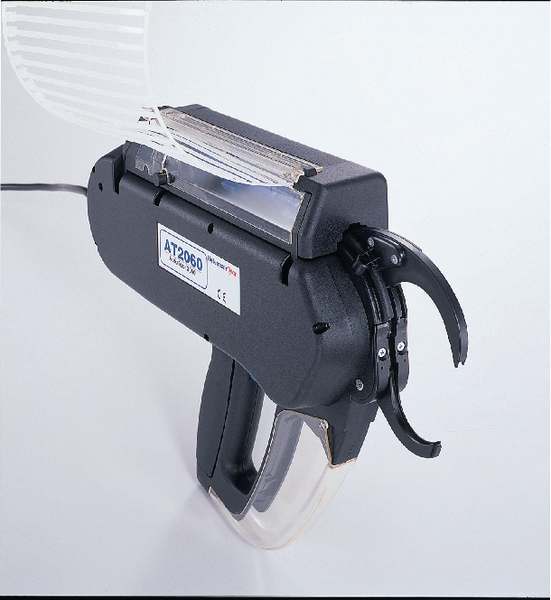

Automatic cable tie tool Dmax=31.75mm, for 3.6mm, 1.8kg, black
Art.-No. 103-00000 | AT2060-MET/PL-BK | Details

Fast: Cable ties are installed quickly with one easy trigger depression, increasing productivity while decreasing labor costs.
Reliable: HellermannTyton's automatic cable tie systems have been tested to perform extremely consistently, without interruption to workflow.
Ergonomic: The ergonomic design of the automatic cable tie tool systems feature a comfortable grip, low weight, and easy trigger depression to reduce installer effort and strain while installing cable ties.
Providing Valuable Operator Feedback: Equipped with a self diagnostic LCD information screen, the automatic cable tie system easily guides the user through the cycles of cable tie installations.
Flexible Manufacturing Versatility: HellermannTyton's cable tie tool systems support principles of flexible manufacturing requirements and environments. This system can be used in handheld, bench mount, and overhead assembly configurations. The versatile overhead assembly option provides the ultimate integration into the customer's manufacturing area. HellermannTyton's autotool AT2060 is powered by a standard 110 AC 27V electrical outlet that the power supply converts to a low DC voltage for the tool.
Uniform Fastening Quality: HellermannTyton's automatic cable tie systems feature adjustable tension control to deliver consistent levels of cable tie fastening.
Range: HellermannTyton offers the widest range of automatic cable tie tool systems which cover cable tie tensile strengths of 18, 30 and 50 pounds with bundle diameters between 1/16" to over 3".

Add to watchlist

Request your individual offer now

Request quote

Downloads

More products in this product group:

Automatic Cable Tying Systems >

Base Data

Application	Harness binding
Colour	Black (BK)
For Cable Tie Width	0.14 - 0.14"
For Cable Tie Width	3.6 - 3.6mm
For Ties	T30RA30, T30RA3000
Material	Metal (MET), Plastic (PL)
Operation	electrical
PART DESCRIPTION	AT2060-MET/PL-BK
Pack Content	1pc.
Package Content packed in	case
Power Supply unit	85-265 VAC
Product Family	AT2060 Auto Tool
Product Group	Automatic Cable Tying Systems
Tool suitable cable tie material	Plastic
Type	AT2060

Product Dimensions

Bundle Diameter max (metric)	31.75mm
Bundle ∅ min.	1.50mm
Cycle Time	1.2s
Height (H)	269.7mm
Length (L)	361.2mm
Max. Tie Width (G)	3.6mm
Max. Tie Width (G)	3.6mm
Operational Voltage	27
Pawl Travel Stroke	1.25"
Pawl Travel Stroke	3.175cm
Power Supply	Electrical with Power Pack
Strap Width max. (G)	0.14"
Tension Setting	Adjustable
Width (W)	66.4mm
