Scroll down for alternative automation-ready products.

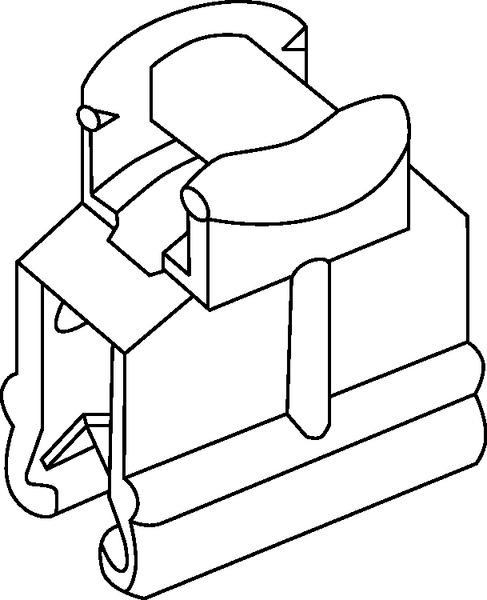

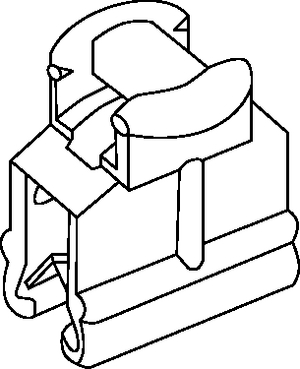

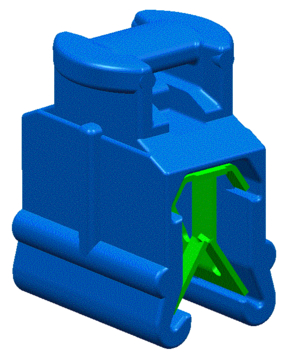

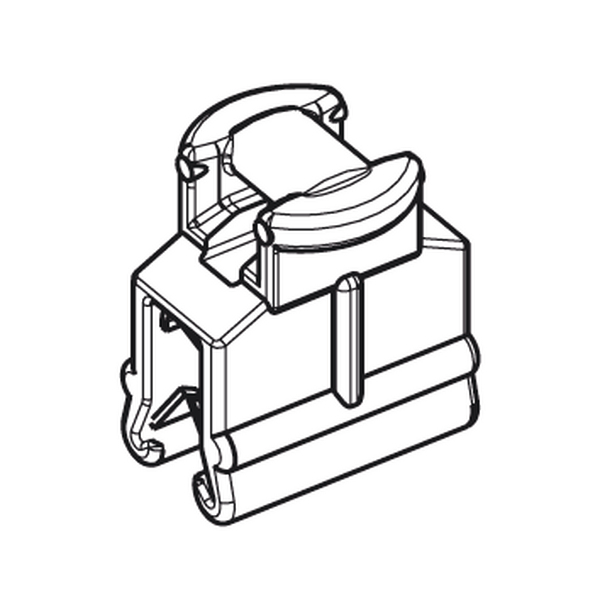

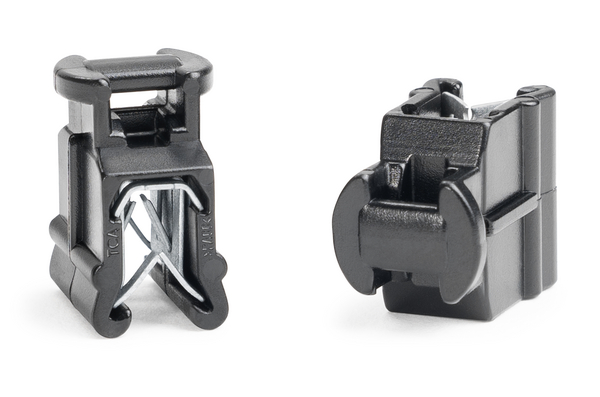

Cable tie mount, black, 10000pcs.
Art.-No. 102-68350 | ATSEC35-PA66HIRHS-BK |  Details

    • Optimized for use automatic cable tying systems
    • Easy to apply
    • The fixing elements can be tied automatically with Autotool System ATS
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Clips to fix cables and harnesses in the automotive and white goods industry.
    Colour Black (BK)
    Fixation Method Edge Clip
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSEC35-PA66HIRHS-BK
    Pack Content 10000pcs.
    Package Content packed in pcs.
    Product Family EdgeClip-Series for automatic cable tying systems
    Product Group Automatic bundling
    Type ATSEC35
    Bundle ∅ min. 0.0mm
    Height (H) 18.9mm
    Length (L) 15.00mm
    Width (W) 10.00mm
    for Panel Thickness min - max 1.5 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026258997
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 10000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 17.535411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 18.185411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 384.7kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
