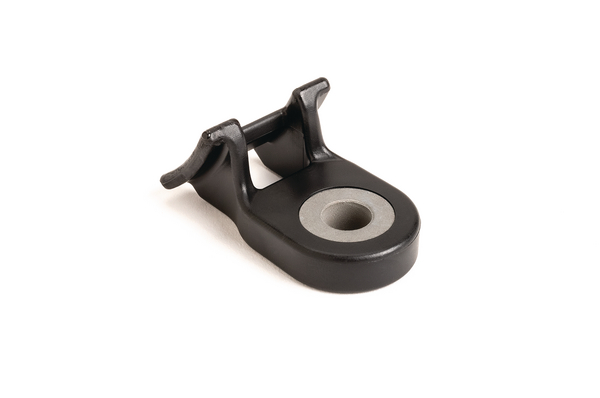

Cable tie mount for screw fixation, Wmax=12.7mm, ∅8.31 mm, ∅8.0 mm, 5/16" (M8) Screw, black, 500pcs.
Art.-No. 151-03103 | HDM320-PA666V0-BK |  Details

Mount and tie combination makes it easy to service bundles in the field.

    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Material Polyamide 6.6/6, V0 (PA666V0)
    Mounting Screw Type 5/16" (M8) Screw
    PART DESCRIPTION HDM320-PA666V0-BK
    Pack Content 500pcs.
    Package Content packed in carton
    Product Family High Torque Mounts (metal bushing)
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Type HDM320
    Height (H) 20.7mm
    Length (L) 46.5mm
    Max. Tie Width (G) 12.7mm
    Strap Width max. (G) 0.5"
    Stud ∅ 0.31"
    Stud ∅ 8.0 mm
    Width (W) 25.0mm
    for Hole ∅ (FH) 8.31 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Limited Fire Hazard Yes
    Max. Torque (kgf-cm) 1576.11kgf-cm
    Max. Torque (lbf-In) 114lbf-ft
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026633749
    Packaging 1 - Weight (kg) 2.72609kg
    Packaging 3 - Height (m) 0.1508125m
    Packaging 3 - Length (m) 0.4365625m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0176m³
    Packaging 3 - Width (m) 0.2667m
    UNSPSC Key 39121717
