Aluminium frame mount, W=6.0mm, T=2.5 - 3.0mm, blue, 100pcs.
Art.-No. 151-02567 | MCAFLM30-1-PA66MD-BU |  Details

    • It can be attached to aluminum frame in 1 second. You can easily fix the wiring by simply turning it 90 degrees to the aluminum frame and fix it.
    • It can be used for aluminum frame made by SUS, MISUMI, Bosch · Rexroth, made by Imao, Aluminum frame made by NIC, and are identifiable by metal detectors.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Equipment maintenance within the food factory Electrical work in the food factory Various facilities and kitchen equipment in the food factory Sanitation Equipment Other metals · Site requiring X-ray detection
    Colour Blue (BU)
    Fixation Method Profile rail
    For Pipe Size/Type Applicable Aluminum Frames: 30mm square type Panel Thickness: 2.5 to 3.0mm Slot Width:6.2 to 6.5mm
    Material Polyamide 6.6, metal detectable (PA66MD)
    PART DESCRIPTION MCAFLM30-1-PA66MD-BU
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family MCAFLM series
    Product Group Fixing mount for aluminum frame, identifiable by metal detectors

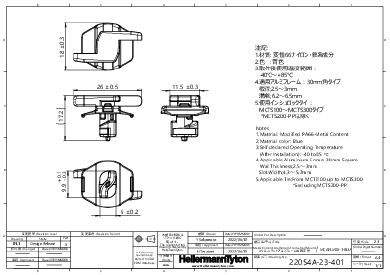

    Type MCAFLM30-1
    Height (H) 17.2mm
    Length (L) 26.0mm
    Length (L2) 9.9mm
    Panel Thickness 0.10 - 0.12"
    Panel Thickness max. 2.5 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.10"
    Width (W) 18mm
    Width (W2) 0.24"
    Width (W2) 6mm
    for Panel Thickness min - max 2.5 - 3 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4944387118612
    Packaging 1 - Height (m) 440m
    Packaging 1 - Length (m) 310m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 34100000m³
    Packaging 1 - Weight (kg) 8.19kg
    Packaging 1 - Width (m) 250m
    UNSPSC Key 39121717
