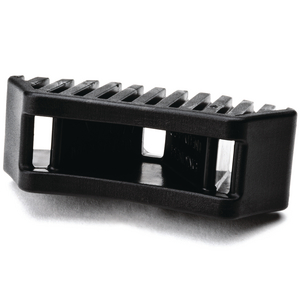

Cable tie mount for screw fixation, ∅11.2 - 20.8 mm, black, 500pcs.
Art.-No. 151-29301
| MSBT120-PA66HIRHS-BK
|
Details
- For parallel routing of three bundles
- Retainer is fixed in the hole with BHT-tie
- Socket centres retainer in the hole and can protect tie from sharp edges
More products in this product group:
| Application | With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| For Ties | BT130, BT105 |
| Key product features | vibration absorbing, for multiple routing |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | MSBT120-PA66HIRHS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | MSBT120 |
| Product Group | Fixing elements for BHT-ties for distance routing |
| Type | MSBT120 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026312453 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 4.000001kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.1508125m |
| Packaging 3 - Length (m) | 0.4365625m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 4.27kg |
| Packaging 3 - Width (m) | 0.2667m |
| Packaging 4 - Height (m) | 12.3m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 11.808m³ |
| Packaging 4 - Weight (kg) | 200.34kg |
| Packaging 4 - Width (m) | 0.8m |
