22/12/2024

Cable tie mount for hole (round), Wmax=5.0mm, T=3.2mm, ∅6.25 - 6.55 mm, black, 1000pcs.
Art.-No. 151-00229 | PBM-PA66-BK |  Details

Designed for simple installation by pushing the mount through a pre-drilled hole.

    • Push Mounts, when used with standard cable ties, provide a permanent bundling solution below a panel.
    • The "button" style head is ideal for space constrained areas and is easily inserted through a pre-drilled hole.
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The push button mounts are used where the back of the panel is accessible.
    Colour Black (BK)
    Fixation Method Push Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION PBM-PA66-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Product Group Push Mount
    Type PBM

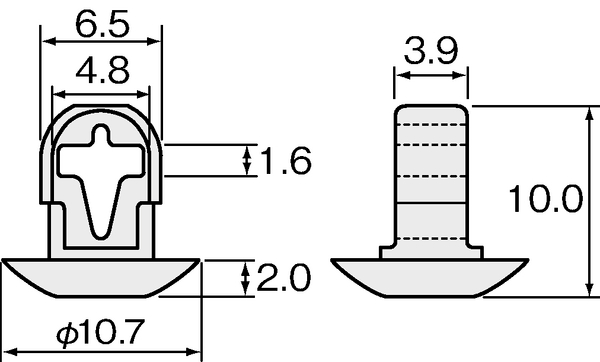

    Height (H) 10.20mm
    Height (H2) 2.0mm
    Length (L) 10.7mm
    Max. Tie Width (G) 5.0mm
    Panel Thickness 0.13"
    Panel Thickness max. 3.2mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.118"
    Strap Width max. (G) 0.2"
    Width (W) 6.6mm
    for Hole ∅ (FH) 6.25 - 6.55 mm
    for Panel Thickness min - max 3 - 3 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E64139
    UV-Stabilised No
    GTIN-13 / EAN 4031026718125
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 5.49kg
    Packaging 3 - Width (m) 0.3063875m
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
