Cable tie mount for edge, T=1.0 - 3.0mm, black, 500pcs.
Art.-No. 151-01207 | RCEC-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION RCEC-PA66HIRHSUV-BK
    Pack Content 500pcs.
    Package Content packed in carton
    Type RCEC

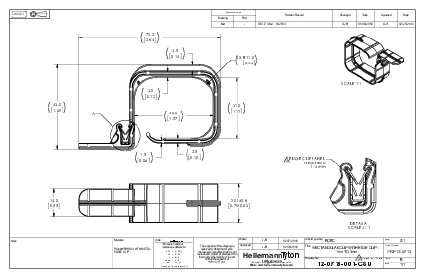

    Height (H) 43.0mm
    Height (H2) 31.0mm
    Length (L) 72.2mm
    Panel Thickness 0.04 - 0.12"
    Panel Thickness max. 1.0 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.04"
    Width (W) 20.0mm
    Width (W2) 0.55"
    Width (W2) 14.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026718170
    Packaging 3 - Weight (kg) 4.04kg
    UNSPSC Key 39121702
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
