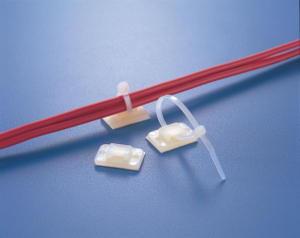

Cable tie mount for screw fixation, Wmax=4.0mm, ∅2.2 mm, natural, 100pcs.
Art.-No. 151-21319
| TY3G1-PA66-NA
|
Details
- Screwable or self-adhesive versions
- Concave design to support larger diameter cables and bundles
- 2-way mounting base for safe guiding of cables and conduits
- Suitable for applications with minimal space
- Mounted before cable installation
- Usable with standard cable ties
Request your individual offer now
Request quote
More products in this product group:
| Application | These products are designed for simple yet robust installation in a wide variety of applications. TY-Series mounts with a rectangular design are commonly used in telecoms equipment, switchgear and control cabinets. With its small and compact design TY3G1 offers an easy and rapid assembly for many different applications. |
| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| For Ties | T18 - T40 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | TY3G1-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | TY-Series longish design |
| Product Group | Screw Fixing Cable Tie Mounts |
| Type | TY3G1 |
Download
|
|
|
| GTIN-13 / EAN | 4031026122281 |
| Packaging 1 - Height (m) | 0.01m |
| Packaging 1 - Length (m) | 0.225m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00029m³ |
| Packaging 1 - Weight (kg) | 0.0704kg |
| Packaging 1 - Width (m) | 0.13m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 4.6585kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 245.16kg |
| Packaging 4 - Width (m) | 0.8m |
