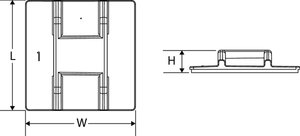

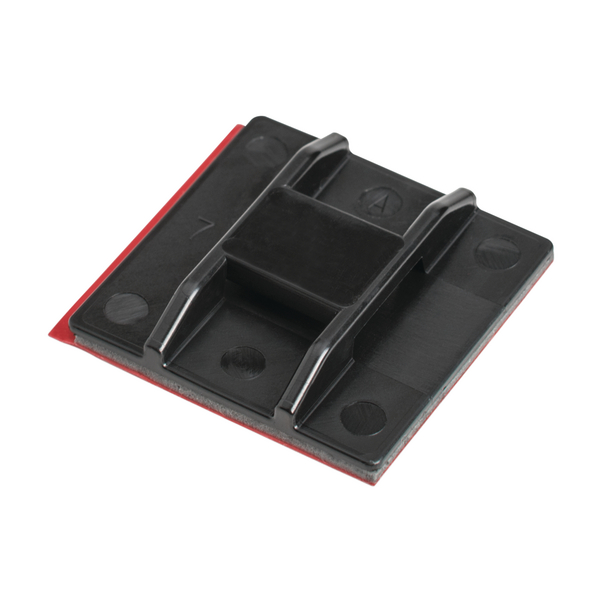

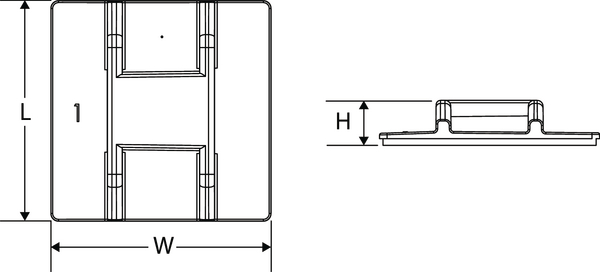

Cable tie mount for adhesive use, Wmax=13.2mm, Adhesive, black, 100pcs.
Art.-No. 151-01857
| WSMB5AHB-PA66HIRHSUV-BK
|
Details
- Simple to instal
- Excellent security, particularly in areas of high vibration
- Maximum surface area with adhesive to achieve high pull-off force
- 4-way entry for cable tie for quicker and more flexible installation
Request your individual offer now
Request quote
More products in this product group:
| Application | Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable. |
| Colour | Black (BK) |
| Fixation Method | adhesive |
| For Ties | T18 - T150 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Maximum Static Load (lb/ft) | 2.1lbf-ft |
| Mounting Screw Type | Adhesive |
| PART DESCRIPTION | WSMB5AHB-PA66HIRHSUV-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | MB-Series square design, self-adhesive |
| Product Group | Cable tie mounts |
| Type | WSMB5AHB |
Download
| Adhesive | Acrylic foam |
| Adhesive Operating Temperature | -40 °C to +80 °C |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
