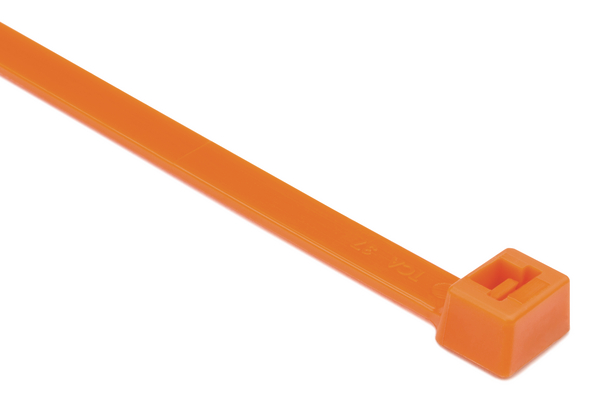

Cable tie inside serrated, 387.0x7.6mm, ∅5.0-105.0mm, orange, 500pcs.
Art.-No. 111-12038 | T120R-PA66-OG |  Details

Heavy duty T-Series cable ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Orange (OG)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T120R-PA66-OG
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family T-Series in PA66 coloured
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120R
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ min. 5.0mm
    Cable Tie Head Length (metric) 10.5mm
    Cable Tie Head Width (metric) 12.65mm
    Height (H) 7.35mm
    Length (L) 387.0mm
    Min.Tensile Strength 535N
    Strap Width max. (G) 0.50"
    Thickness (T) 1.9mm
    Width (W) 7.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    US Gov. Designation MS3367-3-3, Class 1, SAE-AS33671
    UV-Stabilised No
    GTIN-13 / EAN 4031026425825
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121703
    Show all
    Cable Ties and Fixings Cable Ties and Fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable Ties >
    Cable management for high temperature applications Cable management for high temperature applications

    Cable management for high temperature applications

    High temperature is a key issue for many industries. We can replace metal with plastics such as PA46, PEEK and E/TFE (Tefzel®) – even in applications involving a high operating temperature and without compromising on quality and performance. Find out more about HellermannTyton’s expertise in injection-moulded cable management solutions made from high-performance, high-end thermoplastic. Get in touch with us! Your suggestions might be our inspiration for a new product to meet the demands of your application.

    Cable management high temperature applications >

    Cable clips for edges: fasten cables without drilling

    The EdgeClip is a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Cable clips for edges >
