Cable tie inside serrated, 391.16x8.9mm, ∅8.0-105.0mm, natural, 25pcs.
Art.-No. 111-15203 | T150R(U)-PA66-NA Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets

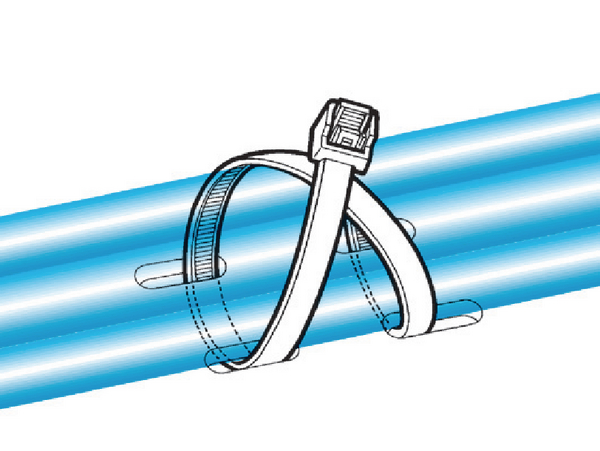

  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Colour Natural (NA)
Identification Plate Position none
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T150R(U)-PA66-NA
Pack Content 25pcs.
Package Content packed in bag
Product Family T-Series in PA66 natural
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Type T150R(U)
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (metric) 9.5mm
Length (L) 391.16mm
Min.Tensile Strength 780N
Thickness (T) 1.9mm
Width (W) 8.9mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Plenum Rating AH-2
ROHS compliant Yes
Specifications
Specifications UL 62275
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US) Yes
UL-File Number E64139
UV-Stabilised No
GTIN-13 / EAN 4031026274829
Packaging 1 - Qty 25
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 9.04kg
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121703
