Cable tie inside serrated, 470.0x7.7mm, ∅15.0-130.0mm, black, 100pcs.
Art.-No. 108-00153 | X120M-PA66HS-BK |  Details

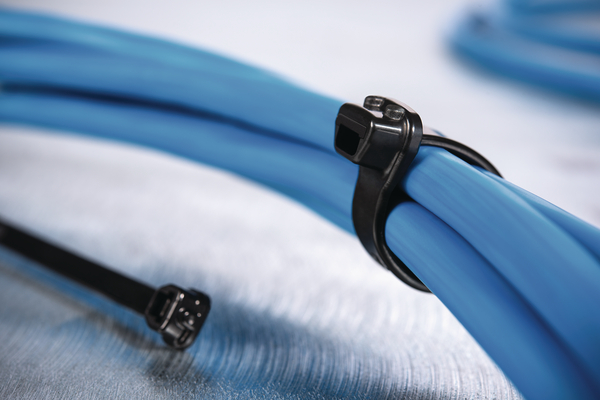

X-Series provides a superior fixing solution for tight applications.

    • Inside serrated cable tie
    • High tensile strength around cable bundles
    • Smooth, rounded head design
    • Space saving solution
    • Improved ergonomic design
    • Provides a secure fastening with no lateral movement
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application The X-Series range of cable ties provides a new and improved design compared with standard cable ties, delivering a range of benefits and enhanced performance. With a new streamlined design and smaller head, the X-Series cable ties provide a superior fixing solution for tight applications, whilst also benefiting from a better grip around the bundle. This professional cable tie range is available in weather resistant and high impact / heat stabilised materials, ensuring these fixings consistently perform well both at high temperatures and in cold environments.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION X120M-PA66HS-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family X-Series
    Product Group Cable ties with smart design
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type X120M
    Variant Inside Serrated
    Bundle Diameter max (metric) 130.0mm
    Bundle ∅ min. 15.0mm
    Length (L) 470.0mm
    Min.Tensile Strength 535N
    Thickness (T) 1.8mm
    Width (W) 7.7mm
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026659701
    UNSPSC Key 39121703
    Show all
