21/11/2024

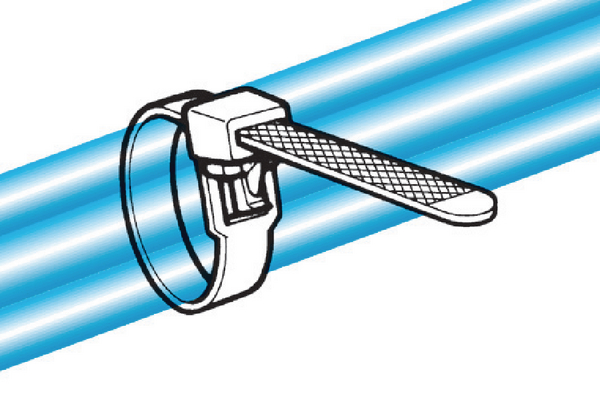

Releasable cable tie, 100x7.4mm, ∅2.5-18.0mm, 222.3N, black, 100pcs.
Art.-No. 115-00044 | RF100-PA66-BK |  Details

    • Variety of colors are prepared for identification purposes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Can be used for temporal bandling, cable identification, and as packing material.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RF100-PA66-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family RF Series
    Product Group Reusable tie
    Releasable Closure (Yes/No) Yes
    Type RF100
    Bundle Diameter max (metric) 18.0mm
    Bundle ∅ min. 2.5mm
    Cable Tie Head Height (metric) 7.8mm
    Cable Tie Head Length (metric) 18mm
    Cable Tie Head Width (metric) 11.0mm
    Length (L) 100mm
    Min.Tensile Strength 222.3N
    Thickness (T) 1.1mm
    Width (W) 7.4mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL OCD link Link
    UL-File Number E64962
    GTIN-13 / EAN 4944387214093
    UNSPSC Key 39121703
    Show all
    Cable Ties and Fixings Cable Ties and Fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable Ties >

    Cable clips for edges: fasten cables without drilling

    The EdgeClip is a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Cable clips for edges >
    Cable management for high temperature applications Cable management for high temperature applications

    Cable management for high temperature applications

    High temperature is a key issue for many industries. We can replace metal with plastics such as PA46, PEEK and E/TFE (Tefzel®) – even in applications involving a high operating temperature and without compromising on quality and performance. Find out more about HellermannTyton’s expertise in injection-moulded cable management solutions made from high-performance, high-end thermoplastic. Get in touch with us! Your suggestions might be our inspiration for a new product to meet the demands of your application.

    Cable management high temperature applications >
