Fixing tie for hole (round), outside serrated, ∅1.6-40.0mm, natural, 100pcs.
Art.-No. 126-00062 | OS190-PA46-NA |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION OS190-PA46-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type OS190
    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ min. 1.6mm

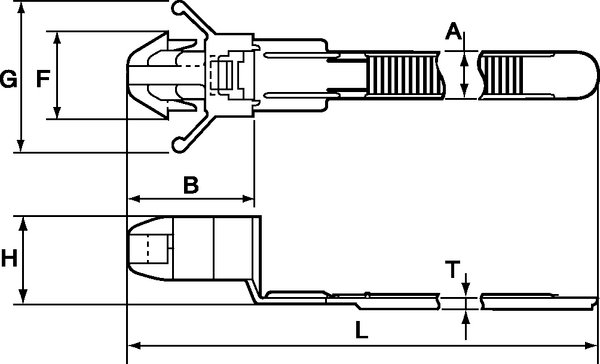

    Height (H2) 9.2mm
    Length (L) 190mm
    Length (L2) 13.30mm
    Min.Tensile Strength 147N
    Panel Thickness 0.02 " – 0.10"
    Panel Thickness max. 0.6 – 2.6mm
    Panel Thickness max. (imperial) 0.1"
    Panel Thickness min. (imperial) 0.023"
    Thickness (T) 1.1mm
    Width (W) 5.0mm
    Width (W2) 9.0mm
    Width (W3) 16.0mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.6 - 2.6 mm
    for Panel Thickness min - max 0 - 0.1 "
    Flammability UL 94 V2
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387927740
    UNSPSC Key 39121703
