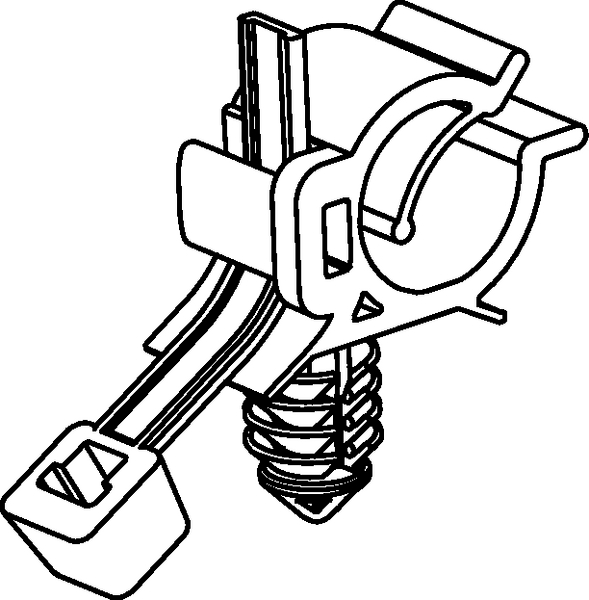

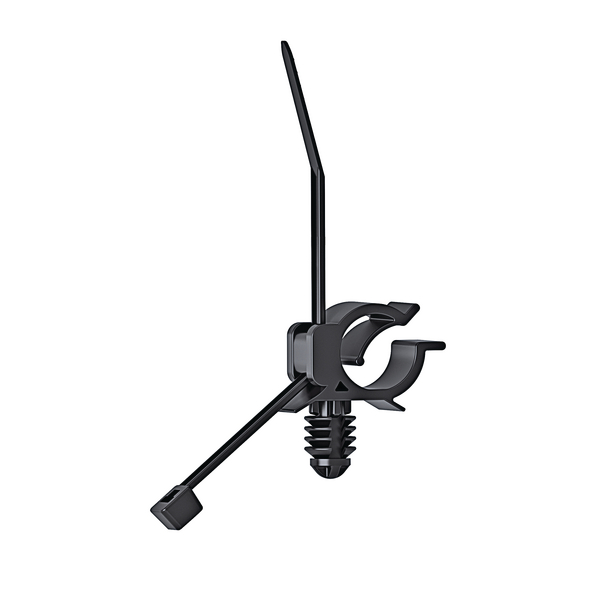

Fixing tie for hole (round), ∅50.0mm, black, 500pcs.
Art.-No. 156-01523 | T50RCTC8FT6-PA66HS/PA66HIRHS-BK |  Details

T50RCTC8FT6.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RCTC8FT6-PA66HS/PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family for parallel routing
    Product Group 2-piece fixing tie with fir tree
    Type T50RCTC8FT6
    Attach to Ø 7.0-11.0
    Bundle Diameter max (metric) 50.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6-4.5mm
    for Hole ∅ (FH) 6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026521916
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0759m³
    Packaging 3 - Weight (kg) 8.842kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 127.104kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
