22/12/2024

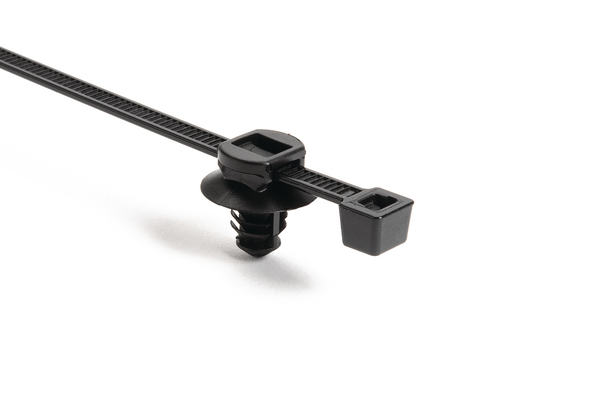

Fixing tie for hole (round), inside serrated, ∅2.0-50.0mm, black, 5000pcs.
Art.-No. 156-02517 | T50RFT6ASET-PA66HIRHSUV-BK |  Details

Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RFT6ASET-PA66HIRHSUV-BK
    Pack Content 5000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT6ASET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 16.4mm
    Length (L) 203.2mm
    Min.Tensile Strength 225N
    Panel Thickness 0.02 - 0.14"
    Panel Thickness max. 0.6 - 3.5mm
    Panel Thickness max. (imperial) 0.14"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.1 - 7.1 mm
    for Panel Thickness min - max 0.6 - 3.5 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026726830
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 9.300001kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 10.100001kg
    Packaging 3 - Width (m) 0.29209999999999997m
    Packaging 4 - Height (m) 1.27m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.219m³
    Packaging 4 - Weight (kg) 142.2kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
