01/04/2025

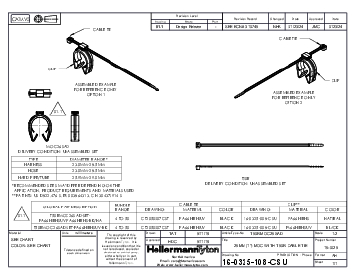

Fixing tie with pipe/tube holder, inside serrated, ⌀23.0-29.0mm, black, 1000pcs.
Art.-No. 156-01821 | T50RMOC26SAD-SET-PA66HIRHSUV-BK |

Copied
The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 50.0mm
    Cable ⌀ min 1.5mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RMOC26SAD-SET-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RMOC26SAD-SET
    Variant Inside Serrated
    Bundle ⌀ max. 29.0mm
    Bundle ⌀ min. 23.0mm
    Bundle Diameter Nom. (ND) 26.0 mm
    Depth (D) 12.0mm
    Height (H) 47.1mm
    Length (L) 34.5mm
    Length (L2) 23.2mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026592800
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 204.15kg
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Width (m) 0.39528749999999997m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
