23/12/2024

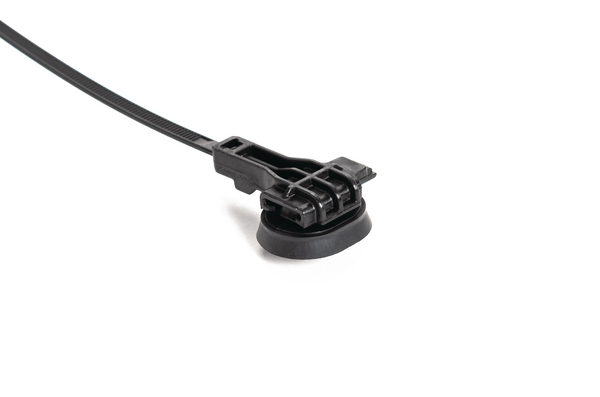

Fixing tie for hole (oval), ∅2-50.0mm, black, 2000pcs.
Art.-No. 156-02543 | T50ROS25BCCSAHOVAL-PA66HIRHSUV/TPE-BK |  Details

The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION T50ROS25BCCSAHOVAL-PA66HIRHSUV/TPE-BK
    Pack Content 2000pcs.
    Package Content packed in bag
    Product Family 2-Piece Fixing Ties with Arrowhead, with Disc, for oval holes, sealed
    Product Group 2-Piece Fixing Ties with Arrowhead, with Disc
    Tie Closure plastic pawl
    Type T50ROS25BCCSAHOVAL
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 2mm
    Fixing Hole Shape Oval
    Height (H) 17.9mm
    Length (L) 228mm
    Min.Tensile Strength 222N
    Offset Length 25.0mm
    Panel Thickness 0.02 - 0.04"
    Panel Thickness max. 0.6 - 1.1mm
    Panel Thickness max. (imperial) 0.04"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 30.9mm
    for Hole ∅ (FH) 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    for Panel Thickness min - max 0 - 0 "
    CE Certification No
    Operating Temperature -40 °C to +110 °C, -35 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026726311
    Packaging 1 - Weight (kg) 0.005kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-02543 Details My watchlist Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
