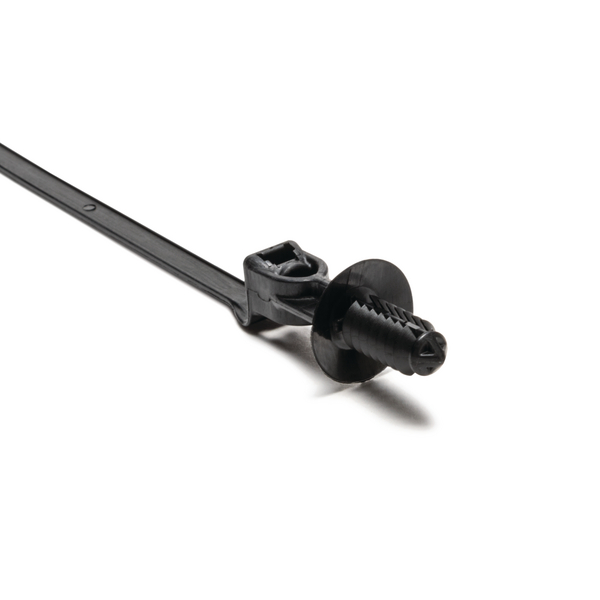

Fixing tie for hole (round), ∅2.0-50.0mm, brown, 3000Bag
Art.-No. 157-02517 | T50ROSFT612.5SO-PA46-BN |  Details

T50ROSFT6S25SO and T50ROSFT612.5SO.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Brown (BN)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50ROSFT612.5SO-PA46-BN
    Pack Content 3000Bag
    Package Content packed in bag
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Type T50ROSFT612.5SO
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 0.65"
    Disc ∅ 16.6mm
    Length (L) 234.2mm
    Length (L2) 12.5mm
    Min.Tensile Strength 225N
    Offset Length 12.5mm
    Panel Thickness max. (imperial) 0.24"
    Panel Thickness min. (imperial) 0.02"
    Thickness (T) 1.5mm
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026702278
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.400001kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 8.3kg
    Packaging 3 - Width (m) 0.29209999999999997m
    Packaging 4 - Qty 36000
    UNSPSC Key 39121703
