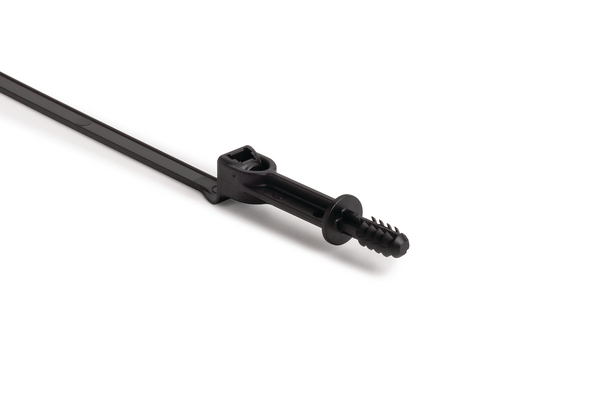

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, black, 2000pcs.
Art.-No. 157-00488
| T50ROSFTM625SO-PA66HIRHSUV-BK
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Request your individual offer now
Request quote
More products in this product group:
Colour | Black (BK) |
Fixation Method | Fir tree for round holes |
Identification Plate Position | none |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | T50ROSFTM625SO-PA66HIRHSUV-BK |
Pack Content | 2000pcs. |
Package Content packed in | carton |
Product Family | With offset 12.5 and 25.0 mm |
Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
Releasable Closure (Yes/No) | No |
Type | T50ROSFTM625SO |
Variant | Outside Serrated |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ min. | 2.0mm |
Height (H) | 5.8mm |
Length (L) | 244.0mm |
Length (L2) | 25.0mm |
Min.Tensile Strength | 225N |
Offset Length | 25.0mm |
Panel Thickness | 0.2" |
Panel Thickness max. | 5.0mm |
Panel Thickness max. (imperial) | 0.197" |
Panel Thickness min. (imperial) | 0.197" |
Thickness (T) | 1.52mm |
Width (W) | 5.05mm |
for Hole ∅ (FH) | M6 x 1 |
for Panel Thickness min - max | 5 - 5 mm |
for Panel Thickness min - max | 0.2 - 0.2 " |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
|
|
GTIN-13 / EAN | 4031026637983 |
Packaging 1 - Height (m) | 0.19m |
Packaging 1 - Length (m) | 0.6m |
Packaging 1 - Qty | 2000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.04469m³ |
Packaging 1 - Weight (kg) | 4.906001kg |
Packaging 1 - Width (m) | 0.392m |
Packaging 3 - Height (m) | 0.2159m |
Packaging 3 - Length (m) | 0.606425m |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.052m³ |
Packaging 3 - Width (m) | 0.396875m |
