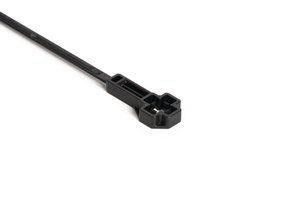

Fixing tie for stud, outside serrated, ∅2.0-50.0mm, brown, 2000
Art.-No. 157-00361
| T50ROSLPM8SMSO25-PA46-BN
|
Details
- One-piece fixing ties
- Outstanding stud retention, keeps bundles secure
- Offset design versions positioning bundles away from obstructions, heat or sources of abrasion
- Low Profile head versions allow mounts to stack, providing parallel routing
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:
Application | These fixing ties are coming with outstanding stud retention. With low insertion force and high extraction performance they offer an ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. |
Colour | Brown (BN) |
Fixation Method | Stud Mount |
Identification Plate Position | none |
Material | Polyamide 4.6 (PA46) |
PART DESCRIPTION | T50ROSLPM8SMSO25-PA46-BN |
Pack Content | 2000 |
Package Content packed in | carton |
Product Family | For cable routing alongside the stud, standoff with low profile head |
Product Group | 1-piece fixing ties for weld studs |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50ROSLPM8SMSO25 |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +130 °C |
ROHS compliant | Yes |
Specifications |
![]() ![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026702223 |
Packaging 1 - Qty | 2000 |
Packaging 1 - Type | bag |
Packaging 1 - Weight (kg) | 4.840001kg |
Packaging 3 - Height (m) | 0.22225m |
Packaging 3 - Length (m) | 0.60325m |
Packaging 3 - Qty | 2000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0532m³ |
Packaging 3 - Weight (kg) | 5.75kg |
Packaging 3 - Width (m) | 0.396875m |
Packaging 4 - Height (m) | 1.244m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 30000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.194m³ |
Packaging 4 - Weight (kg) | 107.25kg |
Packaging 4 - Width (m) | 0.8m |
