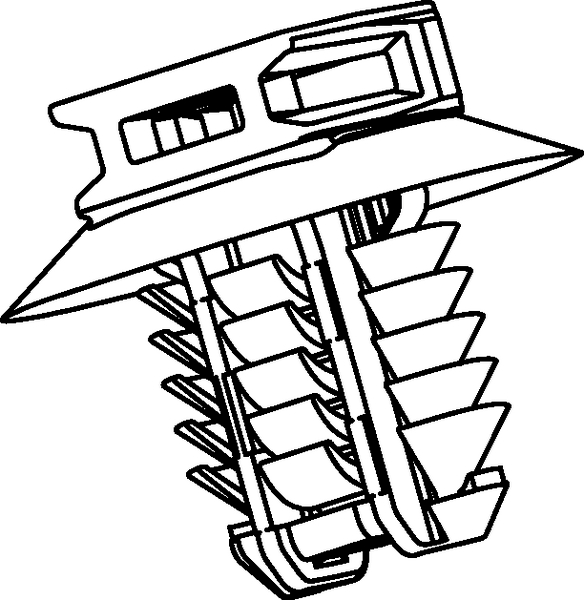

Fixing tie for hole (oval), inside serrated, ∅5.0-50.0mm, black, 3000pcs.
Art.-No. 156-01798 | T50RSADFTOVAL-SET-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RSADFTOVAL-SET-PA66HIRHSUV-BK
    Pack Content 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSADFTOVAL-SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 5.0mm
    Fixing Hole Shape Oval
    Height (H) 20.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness 0.02 - 0.24"
    Panel Thickness max. 0.6 - 6.0mm
    Panel Thickness max. (imperial) 0.24"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 17.63mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026589374
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121703
