19/11/2024

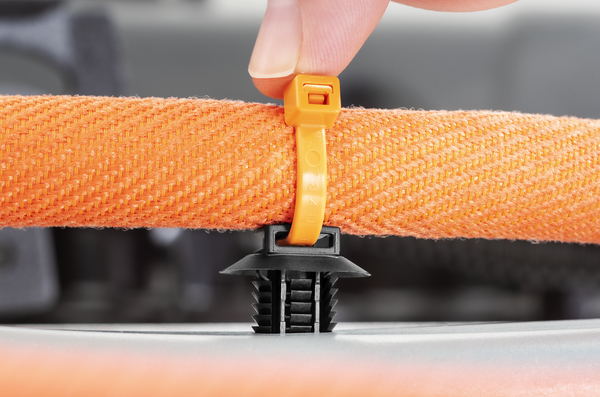

Fixing tie for hole (oval), inside serrated, ∅5.0-50.0mm, orange/black, 3000pcs.
Art.-No. 156-04033 | T50RSADFTOVALSET-PA66HIRHS-OG/BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RSADFTOVALSET-PA66HIRHS-OG/BK
    Pack Content 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSADFTOVALSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ min. 5.0mm
    Fixing Hole Shape Oval
    Height (H) 20.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness 0.02 - 0.24"
    Panel Thickness max. 0.6 - 6.0mm
    Panel Thickness max. (imperial) 0.24"
    Panel Thickness min. (imperial) 0.02"
    Strap Width max. (G) 0.21"
    Thickness (T) 1.2mm
    Width (W) 17.63mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026665733
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
