13/11/2024

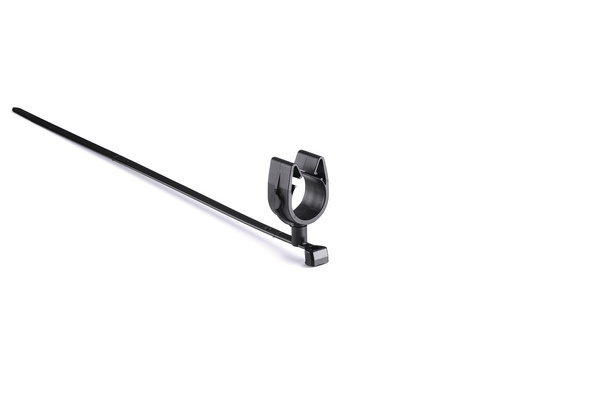

Fixing tie with pipe/tube holder, ∅14.0-18.3mm, black, 1000
Art.-No. 156-01751 | T50SMVCMOC16M180-PA66HIRHSUV-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SMVCMOC16M180-PA66HIRHSUV-BK
    Pack Content 1000
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCMOC16M180
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter max (metric) 18.3mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Height (H) 40.2mm
    Length (L) 22.9mm
    Length (L2) 19.3mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026586403
    Packaging 1 - Qty 1000
    Packaging 1 - Type pcs.
    Packaging 1 - Weight (kg) 2.9kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 9.25kg
    Packaging 3 - Width (m) 0.39688m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 206.0kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
