22/12/2024

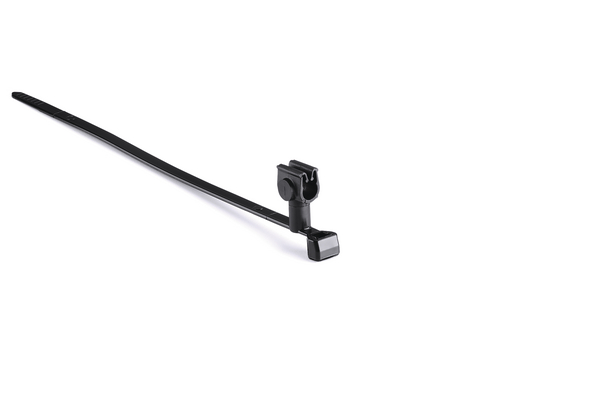

Fixing tie with pipe/tube holder, ∅4.0-5.50mm, black, 2000pcs.
Art.-No. 156-01782 | T50SMVCMOC5M180-PA66HIRHSUV-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SMVCMOC5M180-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCMOC5M180
    Bundle Diameter Nom. (ND) 5.0 mm
    Bundle Diameter max (metric) 5.50mm
    Bundle ∅ min. 4.0mm
    Depth (D) 10.0mm
    Height (H) 25.6mm
    Length (L) 8.3mm
    Length (L2) 12.7mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026587370
    Packaging 1 - Weight (kg) 200.55kg
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Weight (kg) 4.3kg
    Packaging 3 - Width (m) 0.3413252m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
