Fixing tie for hole (oval), ∅1.6-30mm, black, 500pcs.
Art.-No. 126-00210 | T60SOSSFT70X120-E-PA66HS-BK | Details

1-piece fixing ties with arrowhead, with disc for oval holes.

Easy to install without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
Cable tie head always situated in a defined position
Versions for oval holes feature anti-twist protection

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with arrowhead, with disc >

Base Data

Application	With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Application Tool	ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour	Black (BK)
Fixation Method	Arrowhead for oval holes
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T60SOSSFT70X120-E-PA66HS-BK
Pack Content	500pcs.
Package Content packed in	box
Product Family	for oval holes
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T60SOSSFT70X120-E

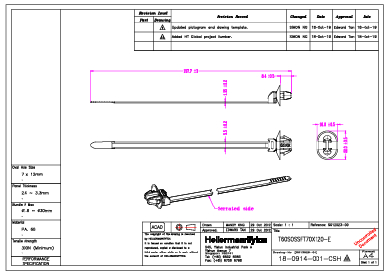

Product Dimensions

Bundle Diameter max (metric)	30mm
Bundle ∅ min.	1.6mm
Disc ∅	16 X 22mm
Fixing Hole Shape	Oval
Length (L)	157.5mm
Min.Tensile Strength	300N
Thickness (T)	1.35mm
Width (W)	5.5mm
for Hole ∅ (FH)	7.0 x 12.0 mm
for Panel Thickness min - max	2.4 - 3.3 mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026480459

More Information

UNSPSC Key

39121703
