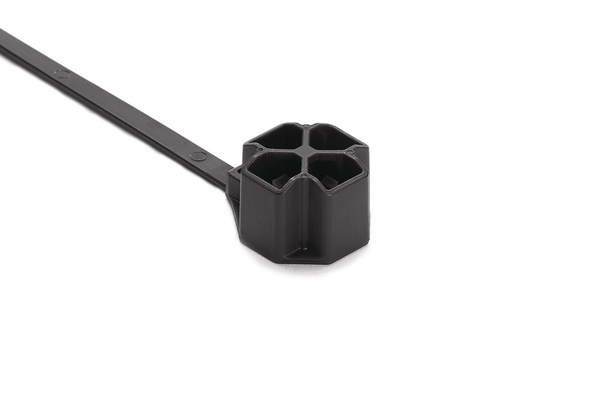

Fixing tie for stud, ∅3.5-50.0mm, black, 2000pcs.
Art.-No. 157-00292
| T80ROSSB12U-PA66HIRHSUV-BK
|
Details
- One-piece fixing ties
- High specification materials
- Superior design
- Suitable for complex applications
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T80ROSSB12U-PA66HIRHSUV-BK |
| Pack Content | 2000pcs. |
| Package Content packed in | carton |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T80ROSSB12U |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026577142 |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 8.620001kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 9.35kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 133.2kg |
| Packaging 4 - Width (m) | 0.8m |
