19/11/2024

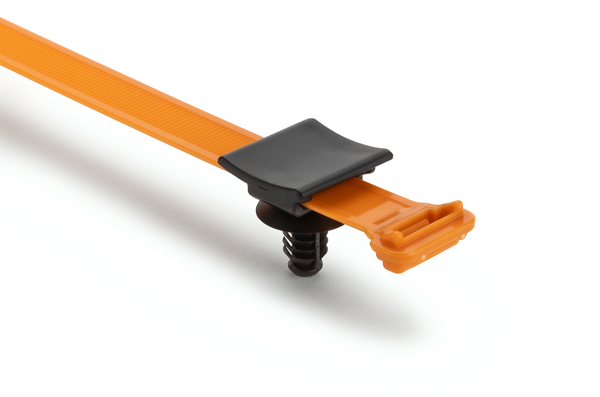

Fixing tie for hole (round), inside serrated, ∅9.4-82.6mm, orange/black, 1200pcs.
Art.-No. 156-04036 | WSIDFTM10WSSDSET-PA66HIRHS/PA66HIRHSUV-OG/BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSIDFTM10WSSDSET-PA66HIRHS/PA66HIRHSUV-OG/BK
    Pack Content 1200pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSIDFTM10WSSDSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 82.6mm
    Bundle ∅ min. 9.4mm
    Height (H) 23.7mm
    Length (L) 307.0mm
    Min.Tensile Strength 533N
    Panel Thickness 0.02 - 0.23"
    Panel Thickness max. 0.6 - 6.0mm
    Panel Thickness max. (imperial) 0.23"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 22.6mm
    for Hole ∅ (FH) 7.6 - 8.4 mm, M10 Threaded
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026665764
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 9.5kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Qty 28800
    UNSPSC Key 39121717
