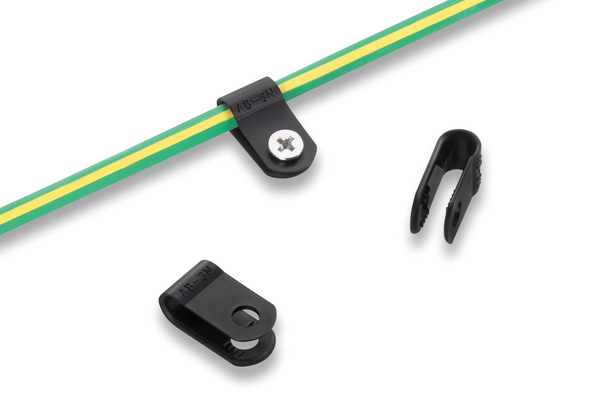

P-clamp closed, Dmax=4.5mm, ∅4.3 mm, black, 100pc.
Art.-No. 151-01344 | AB-3N-PPCOND-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Conductive Polypropylene (PPCOND)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION AB-3N-PPCOND-BK
    Pack Content 100pc.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type AB-3N
    Variant Closed
    Bundle Diameter max (metric) 4.5mm
    Fixing Hole Centres (F) 10.3mm
    Wall (WT) 1.1mm
    Width (W) 9.5mm
    for Hole ∅ (FH) 4.3 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4944387111279
    UNSPSC Key 39121702
