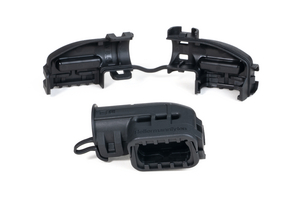

Backshell, 90°, nom∅8.5mm, black, 1200pcs.
Art.-No. 151-02777 | BSA90NW8.5-PA66HS-BK |  Details

Backshell

    • Strain relief for corrugated tubes
    • Four shrouded locks
    • Strapping points fully integrated with cover for maximum retention of harness
    • Nominal diameter printed in backshell
    • Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
    • Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
    • Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The backshells or covers protecting the individual cables and wires from splashing water and dirt.
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION BSA90NW8.5-PA66HS-BK
    Pack Content 1200pcs.
    Package Content packed in bag
    Product Family Backshell A, 90° elbow, NW 8.5 CTCS-series
    Product Group Connector Accessory Backshells, Group A
    Type BSA90NW8.5

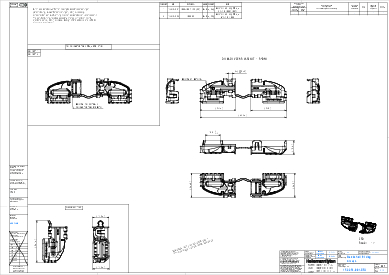

    Angle 90
    Height (H) 17.45mm
    Height (H2) 17.25mm
    Length (L) 38.75mm
    Length (L2) 93.35mm
    Nominal ∅ 8.5mm
    Width (W) 25.59mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026617862
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 1200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 6.425411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 7.075411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 162.5kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
