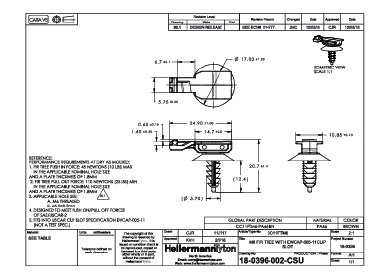

Connector clip, EWCAP-005-11, brown, 5000
Art.-No. 151-02458 | CC11FTM6-PA46-BN |  Details

Fir tree provides low insertion effort yet delivers exceptional retention strength in a 5mm hole and M6 threaded hole.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Brown (BN)
    Fixation Method Fir tree for round holes
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CC11FTM6-PA46-BN
    Pack Content 5000
    Package Content packed in carton
    Type CC11FTM6
    Disc ∅ 0.69"
    Disc ∅ 17.5mm
    Height (H) 20.7mm
    Length (L) 24.9mm
    Panel Thickness 0.05 - 0.18"
    Panel Thickness max. 1.3 - 4.5mm
    Panel Thickness max. (imperial) 0.18"
    Panel Thickness min. (imperial) 0.05"
    Width (W) 15.8mm
    for Hole ∅ (FH) M6
    for Panel Thickness min - max 1.3 - 4.5 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026725758
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121702
