28/02/2025

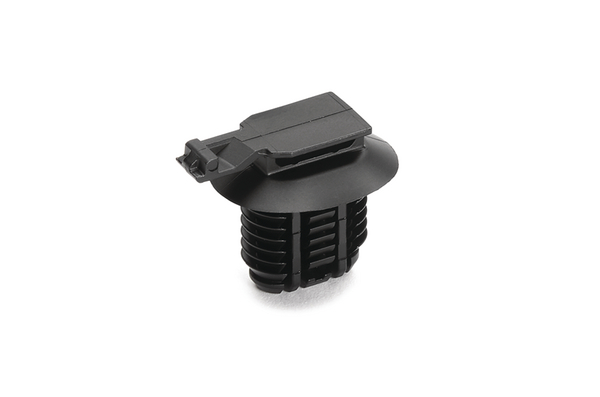

Connector clip, EWCAP-005-11, black, 3000pcs.
Art.-No. 151-01296 | CC18-PA66HIRHS-BK |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC18-PA66HIRHS-BK
    Pack Content 3000pcs.
    Package Content packed in carton
    Type CC18
    Fixing Hole Shape Oval
    Height (H) 23.57mm
    Height (H2) 16.50mm
    Length (L) 30.29mm
    Min.Tensile Strength 155N
    Panel Thickness 0.02 - 0.37"
    Panel Thickness max. 0.6 - 9.5mm
    Panel Thickness max. (imperial) 0.37"
    Panel Thickness min. (imperial) 0.02"
    Width (W) 20.32mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 9.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026509860
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 7.32kg
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 31162305
