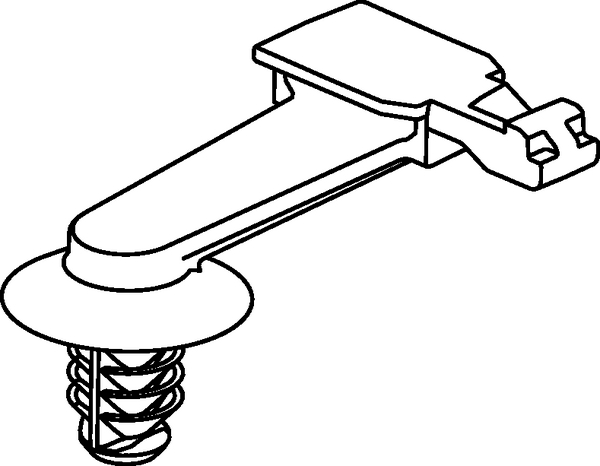

Connector clip, black, 1000Carton
Art.-No. 151-02885 | CC7FT6OS25-PA66HIRHS-BK |  Details

Connector Clips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC7FT6OS25-PA66HIRHS-BK
    Pack Content 1000Carton
    Package Content packed in box
    Type CC7FT6OS25
    Height (H) 22.0mm
    Length (L) 34.6mm
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 12.5mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 6 mm
    UNSPSC Key 39121702
