Home
>
Cable management products
>
Cable Ties and Fixings
>
Fixing Elements
Connector clip, black, 4500pcs.
Art.-No. 151-03318
| CCAMPFTOVAL-PA66HIRHSUV-BK
|
Details
On my watchlist
Add to watchlist
Go to watchlist >
To use the watchlist, please login or register:
Login / Register
Request your individual offer now
Request quote
Connector clip, black, 4500pcs.
Available in the following online shops
Downloads
Base Data
Product Dimensions
Downloads
Base Data
Colour
Black (BK)
Material
Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION
CCAMPFTOVAL-PA66HIRHSUV-BK
Pack Content
4500
pcs.
Package Content packed in
carton
Type
CCAMPFTOVAL
Product Dimensions
Height (H)
23.68
mm
Length (L)
23.63
mm
Panel Thickness
0.02 - 0.27
"
Panel Thickness max.
0.6 - 6.75
mm
Width (W)
17.63
mm
Width (W2)
0.41
"
Width (W2)
10.5
mm
for Hole ∅ (FH)
6.0 - 13.2 mm
Downloads

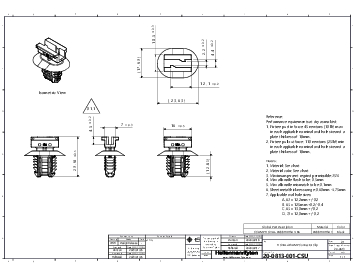

Technical drawing
20-0813-001-CSU
Download
RoHS datasheet
Download
Specifications
Logistics and Packaging
More Information
Specifications
CE Certification
No
ELV compliant (Article 4 - 2)
YES
Flammability
UL 94 HB
Halogen-free
Yes
Hazardous Goods
No
Operating Temperature
-40 °C to +105 °C
ROHS compliant
Yes
Specifications
UL Recognized (US and Canada)
No
UV-Stabilised
Yes
Logistics and Packaging
GTIN-13 / EAN
4031026651071
Packaging 3 - Height (m)
0.2159
m
Packaging 3 - Length (m)
0.606425
m
Packaging 3 - Type
box
Packaging 3 - Volume (m³)
0.052
m³
Packaging 3 - Width (m)
0.396875
m
More Information
UNSPSC Key
39121702
Art.-No.: 151-03318
