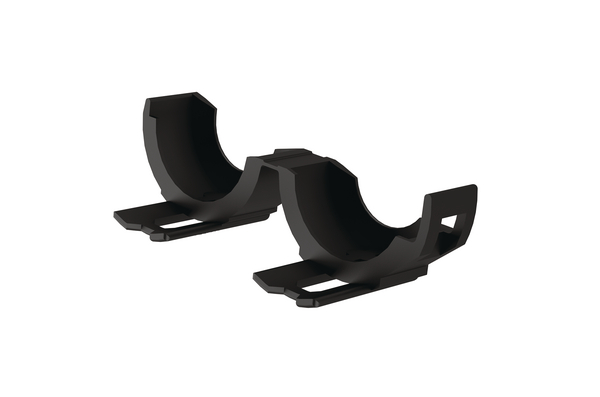

Corrugated tube clip with pipe/tube holder, black, 1100pcs.
Art.-No. 151-02689 | CDC10-13-PA66HIRHS-BK |  Details

Conduit clamp features an internal rib to prevent movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Attach Base
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC10-13-PA66HIRHS-BK
    Pack Content 1100pcs.
    Package Content packed in carton
    Type CDC10-13
    Variant Attach Base
    Attach to Ø 13
    Bundle Diameter max (metric) 13.0mm
    Diameter (D) 13.6mm
    Height (H) 17.2mm
    Length (L) 59.4mm
    Width (W) 59.4mm
    ∅ (D2) 20.3mm
    ∅ D 0.54"
    ∅ D2 0.8"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    UNSPSC Key 39121702
