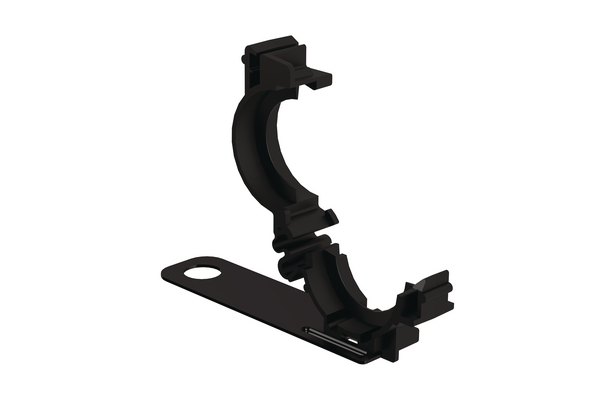

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 600pcs.
Art.-No. 151-02619 | CDC22OSR60.5M10-PA66-BK |  Details

Internal rib prevents movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M10 Screw
    PART DESCRIPTION CDC22OSR60.5M10-PA66-BK
    Pack Content 600pcs.
    Package Content packed in carton
    Type CDC22OSR60.5M10
    Attach to Ø 22
    Bundle Diameter max (metric) 22.0mm
    Diameter (D) 23.7mm
    Height (H) 72.8mm
    Length (L) 92.7mm
    Offset Length 60.5mm
    Stud ∅ M10"
    Stud ∅ M10
    Width (W) 23mm
    for Hole ∅ (FH) 10.6 mm
    ∅ (D2) 31.2mm
    ∅ D 0.93"
    ∅ D2 1.23"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    UNSPSC Key 39121702
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    The Ratchet P Clamp family offers versatility when managing wires, cables and hoses, making it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out.
