25/11/2024

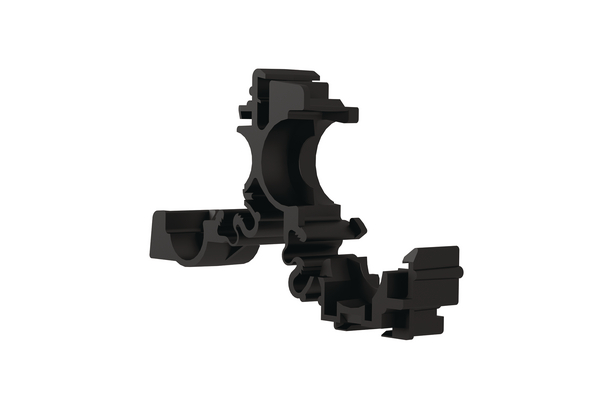

Corrugated tube clip with pipe/tube holder, black, 350pcs.
Art.-No. 151-02713 | CDC6-10-PA66HIRHS-BK |  Details

Multiple configurations to mount to a variety of surfaces.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Attach Base
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC6-10-PA66HIRHS-BK
    Pack Content 350pcs.
    Package Content packed in carton
    Type CDC6-10
    Attach to Ø 6
    Bundle Diameter max (metric) 10.0mm
    Diameter (D) 6.8mm
    Height (H) 52.7mm
    Length (L) 82.5mm
    Width (W) 17.5mm
    ∅ (D2) 17.8mm
    ∅ D 0.27"
    ∅ D2 0.7"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    UNSPSC Key 39121702
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    The Ratchet P Clamp family offers versatility when managing wires, cables and hoses, making it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out.

    P-Clamp >
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
