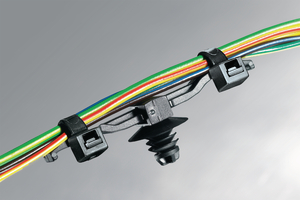

Bundling clip for hole (round), L=54.0mm, black, 500pcs.
Art.-No. 151-02901
| CHA2-PA66-BK
|
Details
- Easy to install without the need for a tool
- Horizontal length tolerance compensation
- Ideal if holes do not fit registration or bundles need to be routed round corners
More products in this product group:
| Application | An easy means of routing and securing cable sets in various parts of cars. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | CHA2-PA66-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | for lateral adjustment |
| Product Group | Bundling clips for round holes with fir tree |
| Type | CHA2 |
| Wings on clip base (Yes / No) | YES |
|
|
| Bundling Bar Length | 2.13" |
| Bundling Bar Length | 54.0mm |
| Disc ∅ | 0.55" |
| Disc ∅ | 14.0mm |
| Fixing Hole Shape | Circular |

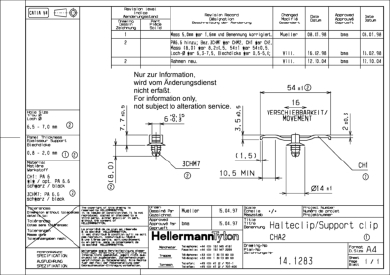

| Height (H) | 7.7mm |
| Height (H2) | 8.0mm |
| Length (L) | 54.0mm |
| Length of Fir Tree | 8.0mm |
| Panel Thickness | 0.03 - 0.08" |
| Panel Thickness max. | 0.8 - 2.0mm |
| Panel Thickness max. (imperial) | 0.08" |
| Panel Thickness min. (imperial) | 0.03" |
| Width (W) | 6.0mm |
| for Hole ∅ (FH) | 6.5 - 7.0 mm |
| for Panel Thickness min - max | 0.8 - 2 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026232140 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.21m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00272m³ |
| Packaging 1 - Weight (kg) | 0.655001kg |
| Packaging 1 - Width (m) | 0.185m |
| Packaging 3 - Height (m) | 0.36m |
| Packaging 3 - Length (m) | 0.57m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0759m³ |
| Packaging 3 - Weight (kg) | 13.755kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Height (m) | 1.225m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.176m³ |
| Packaging 4 - Weight (kg) | 186.06kg |
| Packaging 4 - Width (m) | 0.8m |
