Connector clip for edge, EWCAP-005-11, black, 500pcs.
Art.-No. 151-00499 | ECC1CPT-PA66HIRHS-BK |  Details

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

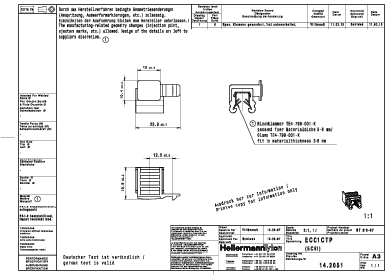

    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ECC1CPT-PA66HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Group Connector Clips for Edges
    Type ECC1CPT
    Height (H) 18.0mm
    Length (L) 23.9mm
    Panel Thickness 0.12 - 0.24"
    Panel Thickness max. 3.0 - 6.0mm
    Panel Thickness max. (imperial) 0.24"
    Panel Thickness min. (imperial) 0.12"
    Width (W) 16.9mm
    for Panel Thickness min - max 3 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026286730
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.018m³
    Packaging 1 - Weight (kg) 1.215993kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.502902kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 84000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 171.036kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
