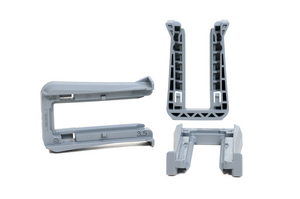

Fixing slider for connectors, T=3.5mm, grey, 1500pcs.
Art.-No. 151-02417 | FSE3.5-PBTGF30FR-GY |  Details

Fixing Slider (V0)

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Grey (GY)
    Material Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR)
    PART DESCRIPTION FSE3.5-PBTGF30FR-GY
    Pack Content 1500pcs.
    Package Content packed in bag
    Product Family Fixing Slider E, 3.5 mm CTCS-series
    Product Group Connector Accessory Fixing Slider, Group E
    Type FSE3.5
    Height (H) 12.15mm
    Length (L) 56.5mm
    Panel Thickness max. 3.5mm
    Width (W) 36.2mm
    Width (W2) 14.1mm
    for Panel Thickness min - max 3.5 - 3.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026608327
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 11.960411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 12.610411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 273.2kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
