Cable clip for edge, Dmin=4.5mm, Dmax=5.0mm
Art.-No. 151-02271 | HCEC3.0TPS-PA66HIRHS-BK |  Details

    • Clips to be pushed onto an edge
    • Low-vibration routing of bigger bundle diameters
    • To be closed single handed, a snap can be felt
    • Bundels can be released at any time
    • Covers are releasable for maintenance or post-installations
    • EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters
    • EC41: for parallel guidance of two bundles
    • HCEC3.0TPS: specially rounded surface to minimise risk of injury
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION HCEC3.0TPS-PA66HIRHS-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Product Group Fixing Elements for Tubes and Harnesses, for Edges

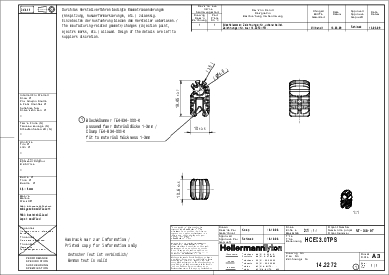

    Type HCEC3.0TPS
    Attach to Ø 4.5 - 5.0 mm
    Bundle Diameter max (metric) 5.0mm
    Bundle ∅ min. 4.5mm
    Length (L) 19.45mm
    Width (W) 10mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026293332
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00441m³
    Packaging 1 - Weight (kg) 1.351862kg
    Packaging 1 - Width (m) 0.28m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 13.73862kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 350.76kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
