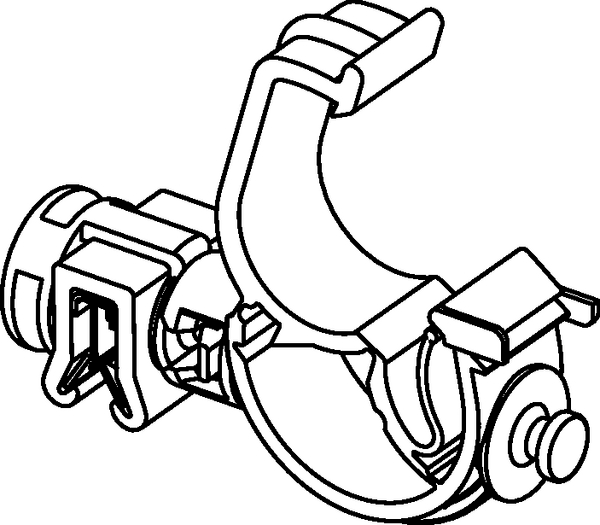

Cable clip, T=1-3mm, Dmin=3mm, Dmax=13mm
Art.-No. 156-03376 | IAHC1TCBTOSTUD5-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Fixation Method with EdgeClip (Mounts)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION IAHC1TCBTOSTUD5-PA66HIRHS-BK
    Pack Content 1000pcs.
    Package Content packed in box
    Type IAHC1TCBTOSTUD5
    Bundle Diameter max (metric) 13mm
    Bundle ∅ min. 3mm
    Height (H) 24.9mm
    Length (L) 45.1mm
    Panel Thickness max. 1-3mm
    Width (W) 13.2mm
    for Panel Thickness min - max 1 - 3 mm
    GTIN-13 / EAN 4031026659619
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.6m
    Packaging 3 - Qty 1000
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
