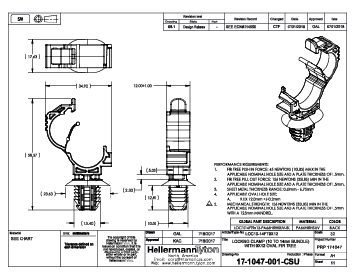

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅9.0 x 12.0 mm/9.0 x 14.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom∅=10 - 14 mm
Art.-No. 151-02218
| LOC1014FT9x12-PA66HIRHSUV-BK
|
Details
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Key product features | lockable, removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC1014FT9x12-PA66HIRHSUV-BK |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Type | LOC1014FT9x12 |
| Bundle Diameter Nom. (ND) | 10 - 14 mm |
| Bundle Diameter max (metric) | 14.0mm |
| Bundle ∅ min. | 10.0mm |
| Disc ∅ | 23.63mm |
| Disc ∅ | 0.93" |
| Fixing Hole Shape | Oval |
| Height (H) | 58.57mm |
| Length (L) | 35.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.02 - 0.27" |
| Panel Thickness max. | 0.6 - 6.75mm |
| Panel Thickness max. (imperial) | 0.27" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 12.0mm |
| Width (W2) | 17.63mm |
| Width (W2) | 0.70" |
| for Hole ∅ (FH) | 9.0 x 12.0 mm, 9.0 x 14.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL-File Number | E64139 |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026644561 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.254m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00723m³ |
| Packaging 1 - Weight (kg) | 0.210001kg |
| Packaging 1 - Width (m) | 0.356m |
| Packaging 3 - Height (m) | 0.142875m |
| Packaging 3 - Length (m) | 0.5159375m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0229m³ |
| Packaging 3 - Weight (kg) | 2.31kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.213m³ |
| Packaging 4 - Weight (kg) | 69.32kg |
| Packaging 4 - Width (m) | 0.8m |
