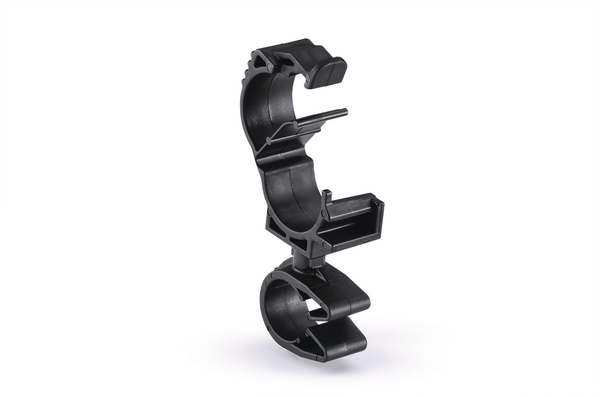

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom∅=10.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01861 | MOC10FLOC10-14-PA66HIRHS-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION MOC10FLOC10-14-PA66HIRHS-BK
    Pack Content 2000
    Package Content packed in carton
    Type MOC10FLOC10-14
    Variant Clip to Clamp
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
    Bundle Diameter max (metric) 11.5mm
    Bundle ∅ 2 max. 14.0mm
    Bundle ∅ 2 min. 10.0mm
    Bundle ∅ min. 9.5mm
    Depth (D) 12.0mm
    Height (H) 27.4mm
    Height (H2) 19.6mm
    Length (L) 45.40mm
    Length (L2) 25.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026715605
    Packaging 1 - Weight (kg) 203.95kg
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 7.46kg
    Packaging 3 - Width (m) 0.349m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    UNSPSC Key 39121702
